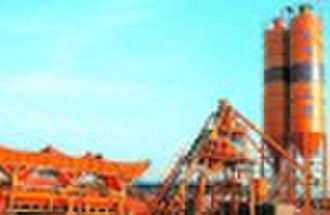

HZS50 Concrete Mixing Plant

HZS50 Concrete Mxing Plant HZS series concrete mixingplant is a kind of automatic concrete mixing equipment which composed by batching system, mixing system, electric control system and etc. It has high precision microcomputer control system, individual manual control system, proportioning storage, automatic fall compensation, sand moisture compensation and print system which can reserve tank production automatically. This series concrete mixing plant is suit for industry, civil,construction, highways, railways, briage,electric, hydro-power engineering, harbor, airport and etc concrete construction.It can also be used as the mixing equipment for commercial concrete production, and the concrete mixing plant/building can be combined to different types and specifications according to customers’ requirement. ITEMHZS50Output40-50m3Discharge height3.8mTotal power93kwScrew conveyor No.LSJ219/273*9mScrew conveyor ability40Twin shaft concrete mixerJS1000Power of the concrete mixer2x18.5kwCharge capacity1600LDischarge capacity1000LPL dosing machinePL1600Capacity of storing hopper3*14m3Belt conveyor ability260m3/hCement max load600kgCoal-dust max load150kgWater max load200kgAdmixture max load25kgWater system automatic flow meterDN503kwFlow rate22m3/hPressure0.6MPaelevate bucket capacity1.8m3Lifting speed350mm/sDrive power18.5kwTotal weight16.5tOccupancy area24m*12m
